Specification
1. Overall dimension: 13000 x 2500 x 3850 mm
2. Container dimension: 12840 x 2400 x 2400 mm
3. Tare weight: 8000 kg
4. Capacity: 74 CBM
Standard Configuration
1. Axle: 13 ton Fuwa brand, 150x150, 3 units
2. Suspension: Air suspension
3. King pin: 2", bolt on type
4. Landing gear: 28 ton, two speeds
5. Tire: 11R22.5, 12 units
6. Rim: 8.25-22.5, 12 units
7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light
9. ABS: None
10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
11. Mudguard: Plastic or steel
12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations
1. Lift axle system
2. ABS system: Wabco or Chinese brand
3. Axle: BPW 12 ton

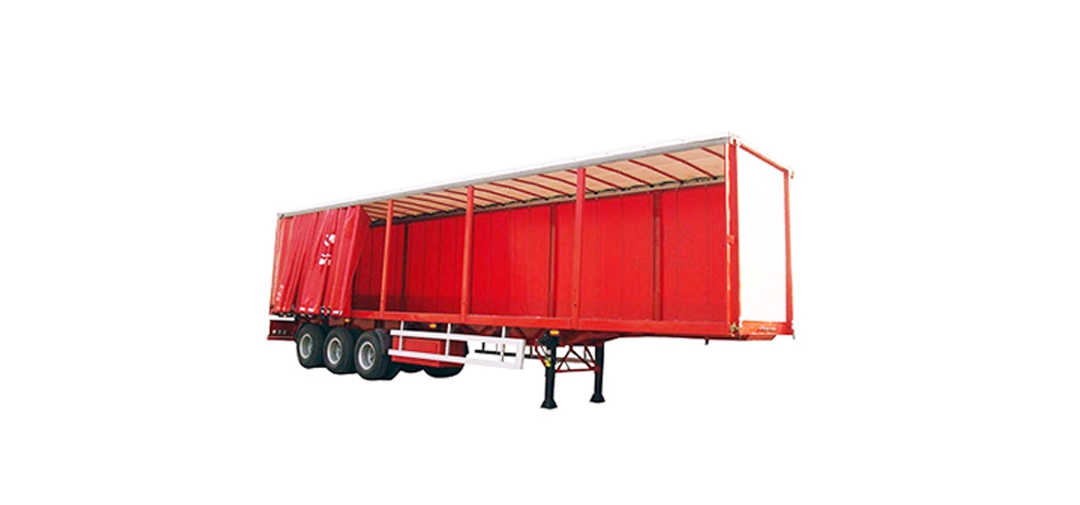

1. Fence trailer and van trailer are used to transport agricultural and sideline product. The body use high-strength steel so that trailer is less weight and less fuel consumption. 2. Side curtain trailer and wing open trailer are used to transport various kinds of bulk goods in full-sealing condition. It has many advantages, such as large room, efficient unloading and safe transportation. 3. Composite board insulation van truck and refrigerated van truck are used to transport various kinds of frozen or fresh goods in full-sealing condition. It has many advantages, such as constant temperature, efficiency and safety.
